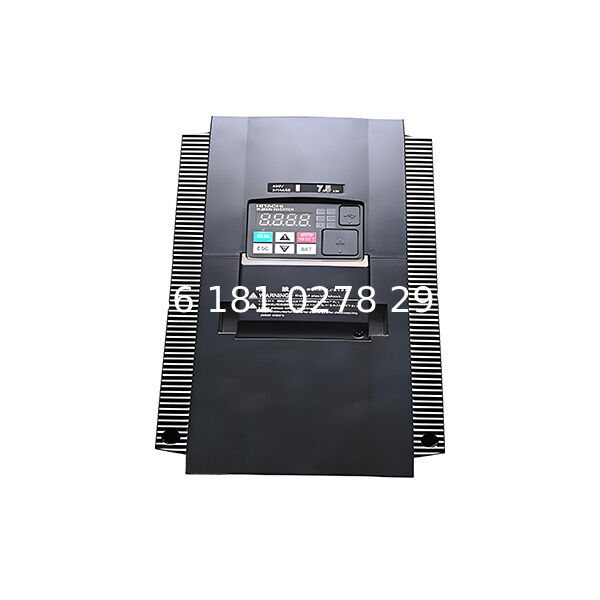

Hitachi WJ200N-075HFC Variable Frequency Drive Optimize Motor Control in Industrial Applications

Hitachi WJ200N-075HFC Variable Frequency Drive: Product Introduction

The Hitachi WJ200N-075HFC is a versatile and high-performance Variable Frequency Drive (VFD), part of Hitachi's WJ200 series, designed for controlling the speed, torque, and direction of electric motors. This drive provides highly efficient motor control in industrial applications that demand precision, reliability, and energy efficiency. With its cutting-edge technology, ease of use, and robust design, the WJ200N-075HFC has become a preferred choice in industries ranging from manufacturing and automation to HVAC systems and water treatment facilities.

In this product introduction, we will explore the key features, advantages, and technical specifications of the Hitachi WJ200N-075HFC, explaining how this VFD can optimize motor control and deliver consistent results in a wide range of industrial environments.

Introduction to Hitachi WJ200N-075HFC

The WJ200N-075HFC is a 3-phase inverter that is capable of handling input voltages ranging from 380V to 480V and delivering a nominal output power of 0.75 kW (1 HP). It is specifically engineered to provide variable speed control for electric motors, offering substantial benefits in energy savings, reduced wear and tear, and improved process control. The WJ200N-075HFC excels in applications requiring high-performance motor control in applications like HVAC systems, conveyors, pumps, and fans.

The WJ200 series, including the WJ200N-075HFC, is known for its advanced features, including sophisticated digital signal processing, user-friendly interfaces, a variety of protection features, and multiple communication protocols. These features make it highly adaptable for both simple and complex systems, enhancing performance while reducing operating costs.

Key Features of WJ200N-075HFC

1. Advanced Control Technology
   The WJ200N-075HFC incorporates advanced motor control technologies such as sensorless vector control and open-loop control. These features enable the drive to optimize motor performance by maintaining precise speed, torque, and stability under varying load conditions. It is capable of fine-tuning motor operations, ensuring efficiency across a wide range of applications.

2. Energy Savings and Efficiency
   One of the main advantages of using the WJ200N-075HFC is its ability to reduce energy consumption. By dynamically adjusting motor speed based on actual load requirements, it significantly lowers the amount of energy wasted when motors run at constant speeds. This results in long-term savings on energy bills while helping to reduce the environmental impact of industrial operations.

3. Compact and Robust Design
   Despite its powerful features, the WJ200N-075HFC has a compact design that allows it to fit into limited spaces. This makes it ideal for environments where space is at a premium, such as crowded control panels or machinery areas. The drive is built to withstand industrial conditions, with a robust housing designed to resist vibration, dust, and moisture, ensuring durability and reliability even in challenging environments.

4. Wide Voltage Input Range
   The WJ200N-075HFC is compatible with a wide input voltage range of 380V to 480V, making it suitable for different power supply configurations in global markets. This flexibility ensures stable operation even in varying electrical conditions and provides superior performance across a range of environments.

5. User-Friendly Interface
   The WJ200N-075HFC comes with an integrated control panel that includes a user-friendly LCD display. This display offers real-time feedback on system performance, fault history, and other vital parameters, making it easy to monitor and configure the drive. The simple navigation of the interface ensures that both technicians and operators can easily adjust settings and troubleshoot issues without needing extensive technical expertise.

6. Built-In Protection Features
   The drive is equipped with a wide range of built-in protection features, including overvoltage protection, undervoltage protection, overcurrent protection, overload protection, and thermal overload. These features protect both the motor and the drive, minimizing the risk of failure and reducing the need for costly repairs or downtime.

7. Advanced Communication Capabilities
   The WJ200N-075HFC supports various communication protocols such as Modbus RTU and CANopen, making it easy to integrate with different automation systems. This feature allows for real-time data exchange between the drive and central control systems, enabling remote monitoring, control, and diagnostics.

8. Flexible Mounting Options
   The drive offers flexibility in mounting configurations, including options for panel and wall mounting. This versatility enables installation in various industrial setups, making the WJ200N-075HFC adaptable to both new installations and retrofits.

9. Intelligent Motor Performance Optimization
   Through advanced signal processing algorithms, the WJ200N-075HFC optimizes motor performance to reduce mechanical stress, noise, and vibration. This ensures smoother operation and prolongs the life of the motor, resulting in fewer maintenance requirements and longer service life.

10. Wide Application Range
    The WJ200N-075HFC can be used in various industrial settings, such as controlling fans, pumps, conveyors, and other equipment requiring variable speed control. Its flexibility makes it an ideal choice for applications in industries like HVAC, water treatment, material handling, food processing, and more.

Technical Specifications

The following table outlines the main technical specifications of the Hitachi WJ200N-075HFC:

Benefits of the WJ200N-075HFC VFD

1. Cost Reduction
   The primary advantage of the WJ200N-075HFC is its ability to save energy by adjusting motor speeds to match load conditions. This leads to significant savings in electricity costs, especially in systems that require varying motor speeds during different operations. Additionally, the efficient design reduces motor wear, minimizing repair and replacement costs.

2. Enhanced System Performance
   By maintaining optimal motor speed and torque, the WJ200N-075HFC enhances overall system performance. This results in smoother operation, improved process control, and reduced vibration and noise. The precise motor control ensures that all processes run more efficiently and effectively, which is crucial in applications like manufacturing and automation.

3. Easy Integration and Installation
   The drive’s flexible mounting options and wide voltage input range allow it to be easily integrated into a variety of systems. Whether upgrading an existing system or installing a new one, the WJ200N-075HFC is designed for quick setup, ensuring minimal downtime during installation.

4. Reliability and Durability
   Built to last, the WJ200N-075HFC withstands demanding industrial environments with features that protect both the drive and the motor. The robust design ensures reliable operation even in challenging conditions such as high temperatures, humidity, and vibrations.

5. User-Friendly Operations
   The LCD display and intuitive interface simplify the setup and operation of the drive. Users can easily access configuration settings and real-time performance data, making maintenance and troubleshooting faster and more efficient. This ensures that operators can quickly respond to any issues that arise.

6. Sustainability
   The WJ200N-075HFC helps reduce energy consumption by adjusting motor speeds to match the actual demands of the system, which lowers electricity consumption and reduces the carbon footprint of the facility.

Applications in Industry

1. HVAC Systems
   In HVAC systems, the WJ200N-075HFC adjusts the speeds of fans and pumps, ensuring optimal airflow and temperature control. This helps save energy and improve comfort levels while maintaining efficient operation across varying environmental conditions.

2. Water Treatment and Pumps
   The drive can be used in water treatment plants for regulating pumps that control water flow, filtration, and distribution. The precise motor control ensures that pumps operate efficiently, extending their lifespan and improving system performance.

3. Conveyor Systems and Material Handling
   In industries where material handling and logistics are essential, the WJ200N-075HFC offers smooth and reliable control of conveyor systems. This enhances throughput and ensures that materials are handled efficiently, reducing downtime and increasing productivity.

4. Food Processing
   In the food processing industry, the WJ200N-075HFC is used for applications such as mixing, pumping, and packaging. The ability to finely control motor speed ensures product consistency, reduces waste, and increases system uptime.

5. Automated Manufacturing Systems
   The drive’s advanced communication protocols and precise motor control make it an excellent choice for automated production lines, where synchronized motor operations are crucial for maintaining smooth, efficient workflows.

Conclusion

The Hitachi WJ200N-075HFC Variable Frequency Drive is a highly capable, energy-efficient solution for motor control in a wide range of industrial applications. Its advanced control features, robust design, and user-friendly interface make it ideal for tasks requiring precise motor speed regulation, reduced energy consumption, and enhanced system reliability. Whether for HVAC systems, water treatment, conveyors, or automated manufacturing processes, the WJ200N-075HFC provides superior performance, reduced operating costs, and increased system efficiency. Its blend of innovative features and reliable performance makes it a valuable addition to any industrial facility.
