Smart Line Module 6SL3130-6AE21-0AB1 Sustainable Regenerative Power for Precision Manufacturing

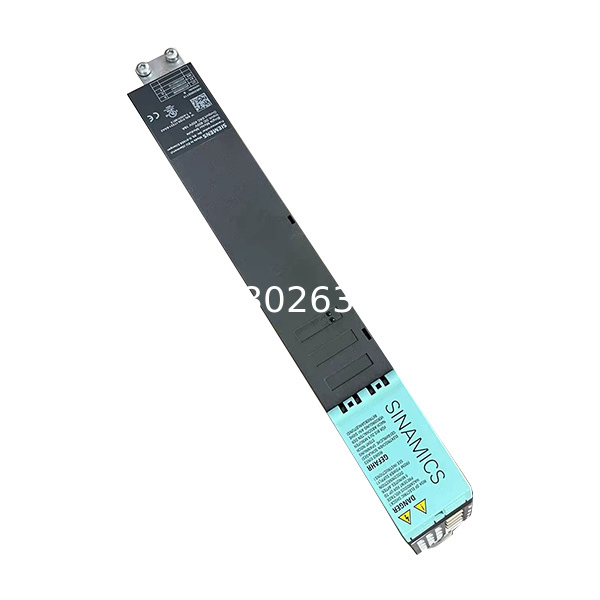

Siemens SINAMICS S120 Smart Line Module 6SL3130-6AE21-0AB1: Compact Regenerative Power for Precision Automation

The Siemens SINAMICS S120 Smart Line Module 6SL3130-6AE21-0AB1 represents a sophisticated fusion of energy efficiency and space-optimized design within industrial drive systems. As a 10 kW regenerative power converter in Siemens' modular S120 ecosystem, this "booksize" module transforms 3-phase AC input (380–480 V, 50/60 Hz) into a stable 600 V DC output at 17 A while enabling bidirectional energy flow—feeding braking energy back to the grid. Engineered for applications demanding sustainability, compact integration, and dynamic control—such as robotic cells, CNC machinery, and precision manufacturing lines—this module bridges high-performance motion control with eco-conscious power management in a remarkably compact footprint.

Core Technological Innovations

Unlike conventional Basic Line Modules (BLMs), the 6SL3130-6AE21-0AB1 leverages IGBT-based smart regeneration technology to deliver unique capabilities:

• 100% Regenerative Energy Recovery: Recaptures kinetic energy during motor deceleration (e.g., from servo axes or centrifuges) and feeds it back to the grid, reducing net energy consumption by 30–35% compared to non-regenerative solutions .

• Adaptive Grid Compatibility: Automatically operates on grounded (TN/TT) and ungrounded (IT) systems without external adapters, featuring integrated pre-charging resistors for safe DC link initialization .

• Configurable Regeneration Control: Enables/disables regeneration via a digital input—critical for compliance with grid feed-in restrictions or safety protocols.

• Integrated Harmonic Suppression: Achieves <8% Total Harmonic Distortion (THDi) without external filters, meeting EN 61800-3 C2 standards for electromagnetic compatibility.

Hardware Design & Integration Architecture

The module’s 100 mm width booksize format enables vertical stacking in control cabinets, reducing installation footprint by 40% compared to traditional drives. Key hardware innovations include:

• Thermal Management: Internal forced-air cooling sustains operation at 0–40°C without derating; at 55°C ambient, power derates to 8 kW, ensuring resilience in confined enclosures.

• Connection Interfaces:

  • X1: 3-phase AC input via screw terminals (supports cables up to 16 mm²) .

  • Integrated DC link busbars for direct connection to S120 motor modules.

  • Dedicated terminals for Safe Torque Off (STO) compliance with SIL 3/PLe safety standards.

  • Two digital inputs and one digital output for real-time control signaling.

• Regenerative Handling: Direct grid feedback eliminates brake resistors in most scenarios, though external resistors can be connected for peak dissipation up to 20 kW (2× rated power).

Performance Specifications & Scalability

The table below positions the 10 kW module within Siemens' Smart Line Module portfolio, highlighting its balance of compactness and regeneration capacity:

Technical Comparison of SINAMICS S120 Smart Line Modules (Internal Air Cooling)

Key advantages of the 10 kW SLM:

• Space Efficiency: 100 mm width enables deployment in multi-axis cabinets where lateral space is constrained.

• Altitude Tolerance: Operates ≤1,000 m without derating; supports installations up to 4,000 m (with output reduction).

• Rapid Control Integration: Digital I/O allows direct safety/control wiring without additional PLC processing.

Applications Driving Operational Value

1. Robotic Assembly Cells:
   Recaptures braking energy during rapid axis deceleration in automotive production lines, reducing net energy costs by 25% while eliminating cooling infrastructure for brake resistors.

2. CNC Tool Changers & Auxiliary Axes:
   Maintains stable DC bus voltage during intermittent operation of tool magazine drives, preventing torque ripple in main spindles. The <8% THDi ensures no interference with sensitive position encoders.

3. Laboratory & Medical Equipment:
   Regenerates energy from centrifuges or automated sample handlers, achieving Class A EMC compliance for MRI-adjacent installations. Nickel-plated contacts resist corrosion in disinfectant-heavy environments.

4. Sustainable Material Handling:
   Powers conveyor diverters with frequent start-stop cycles, converting kinetic energy into reusable electricity. Reduces facility-level harmonic compensation costs by 30% compared to BLM alternatives.

Installation & Lifecycle Management

Critical Integration Guidelines:

• Input Conditioning: Requires external line reactors (e.g., 6SL3000-0BE21-6DA0) for harmonic suppression and grid protection—omission risks 15% THDi exceeding.

• Thermal Design: Maintain ≥50 mm vertical clearance to prevent hot air recirculation; obstructed airflow accelerates capacitor aging by 2.5× 7.

• Safety Validation: STO circuits must be tested with dual-channel monitoring; max disconnect time ≤20 ms.

Lifecycle & Maintenance:

• Product Status: Classified as PM300 (Active Product) with guaranteed support until 2030.

• Predictive Maintenance: Monitor DC link capacitor health via ESR values; >15% increase indicates replacement need within 500 operating hours.

• Reliability Metrics: 142,000 hours MTBF (16-year design life) under standard industrial conditions.

Conclusion: The Compact Energy Transformer

The Siemens 6SL3130-6AE21-0AB1 redefines regenerative power conversion for space-constrained industrial applications. By delivering ALM-grade energy recovery in a 100 mm booksize form factor, it eliminates the traditional compromise between cabinet footprint and sustainability. For engineers designing high-dynamic systems—where frequent braking cycles, grid stability, and compact integration are paramount—this 10 kW SLM provides tangible ROI through reduced energy bills and eliminated brake resistor costs.

Its unique digital I/O implementation offers direct safety integration without DRIVE-CLiQ dependencies, making it ideal for decentralized auxiliary drives in automotive, medical, and precision manufacturing. As industries accelerate toward carbon neutrality, this module exemplifies Siemens' commitment to sustainable innovation—proving that industrial performance and environmental stewardship can coexist in a 4.8 kg package. For retrofits or new installations in the 5–15 kW range, the 6SL3130-6AE21-0AB1 remains the benchmark for compact, intelligent regeneration.
