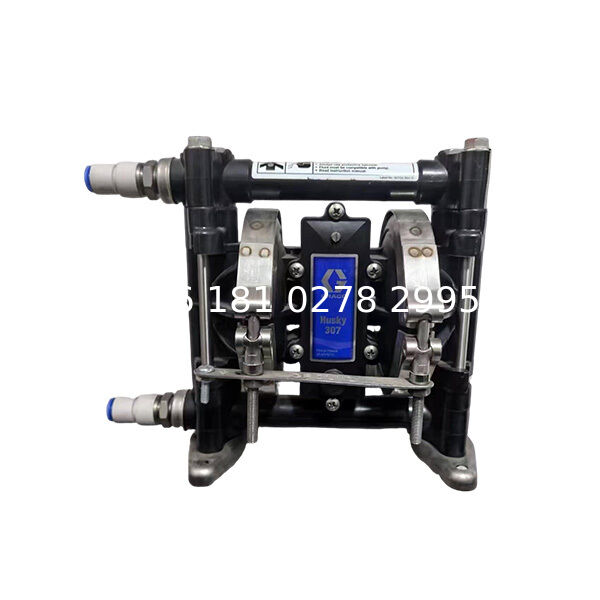

GRACO Husky 307 Air-Operated Diaphragm Pump (Part Number D31331) - Complete Technical Overview

Executive Summary

The GRACO Husky 307 Air-Operated Double Diaphragm (AODD) pump, specifically part number D31331, represents the pinnacle of industrial pumping technology for handling abrasive slurries, viscous materials, and challenging fluid applications. This robust pumping solution combines advanced engineering with premium material construction to deliver exceptional performance in the most demanding industrial environments. Designed with an aluminum center section, polypropylene fluid path components, and Buna-N diaphragms, this specific configuration offers optimal balance between durability and chemical compatibility. Graco's commitment to innovation shines through in the Husky 307 series, providing industries with a reliable, maintenance-friendly solution for continuous operation in harsh conditions.

As a global leader in fluid handling equipment, Graco has engineered the Husky 307 D31331 model to address the unique challenges faced in mining, construction, chemical processing, and manufacturing sectors. This comprehensive product overview will explore the technical specifications, design features, performance capabilities, and practical applications of this exceptional industrial pump.

Technical Specifications & Performance Data

The GRACO Husky 307 D31331 boasts impressive technical specifications that make it suitable for a wide range of industrial applications. Below is a detailed breakdown of its key performance parameters:

*Table 1: Comprehensive Technical Specifications - Husky 307 D31331*

The pump delivers exceptional flow characteristics while maintaining efficient air consumption, making it both powerful and economical to operate. Its ability to handle solids up to 1/8 inch in diameter makes it particularly suitable for slurry applications and fluids containing particulate matter.

Design Features & Material Construction

Advanced Material Configuration

The strategic material selection in the D31331 model ensures optimal performance across various applications while providing excellent durability and chemical resistance.

Table 2: Material Configuration & Application Benefits

Engineering Innovations

The Husky 307 D31331 incorporates several groundbreaking design features that distinguish it from conventional diaphragm pumps:

• Efficient Spool Valve Design: The advanced air distribution system ensures smooth operation with minimal air consumption, providing consistent performance even under variable pressure conditions

• Dual Diaphragm Technology: The synchronized diaphragm operation creates balanced fluid displacement, reducing pulsation and providing smoother flow characteristics

• Non-Stall Air System: Innovative engineering eliminates common stalling issues, ensuring reliable startup and continuous operation without interruption

• Quick-Disassembly Design: The pump's construction allows for rapid field servicing without specialized tools, significantly reducing maintenance downtime

• Universal Mounting Configuration: Flexible installation options accommodate various piping arrangements and space constraints

Performance Characteristics & Operational Advantages

Superior Efficiency Metrics

The GRACO Husky 307 D31331 demonstrates outstanding performance characteristics that provide tangible benefits in industrial applications:

• Optimized Air Consumption: The pump operates efficiently at 18 SCFM, delivering maximum fluid transfer while minimizing compressed air costs

• Excellent Suction Capabilities: With a dry lift of 10 feet and wet lift of 25 feet, the pump handles challenging suction conditions with exceptional reliability

• Broad Temperature Tolerance: Operating effectively from -40°F to 200°F, the pump performs consistently in extreme environmental conditions

• Versatile Flow Control: Simple air pressure adjustment allows precise flow regulation from trickle to full capacity, providing operational flexibility

Reliability & Maintenance Benefits

The engineering excellence of the Husky 307 D31331 translates into significant operational advantages:

• Extended Service Intervals: Robust construction and premium materials contribute to longer component life, reducing maintenance frequency

• Dry-Run Capability: The pump can operate dry indefinitely without damage, providing protection in case of unexpected fluid supply interruption

• Self-Priming Design: Immediate priming capability ensures quick startup and reliable operation in various installation configurations

• Explosion-Proof Operation: Air-powered operation eliminates electrical hazards, making it ideal for dangerous environments

Application Spectrum & Industry Solutions

The GRACO Husky 307 D31331 serves numerous industrial sectors with reliable fluid transfer solutions:

Table 3: Industrial Applications & Performance Considerations

The pump's versatile design accommodates everything from thin solvents to viscous materials with solid content, making it a truly multi-purpose solution for industrial fluid handling.

Installation & Operational Guidelines

Proper Installation Procedures

Correct installation is crucial for optimal performance and longevity:

• Air Supply Requirements: Ensure clean, dry air supply with adequate pressure regulation (20-100 PSI operating range)

• Foundation & Mounting: Secure mounting on a stable surface using appropriate vibration-dampening materials

• Piping Configuration: Use properly sized piping with minimal bends to reduce flow resistance and pressure drop

• Environmental Considerations: Protect from extreme weather conditions when installed outdoors

Maintenance Protocols

Regular maintenance ensures continuous reliable operation:

• Daily Inspection: Check for unusual noises, vibrations, or external leaks

• Preventive Maintenance Schedule: Regular inspection of diaphragms, balls, and seats based on operating hours

• Component Replacement: Always replace diaphragms in pairs and inspect related components during service

• Winterization Procedures: Proper drainage when operating in freezing conditions to prevent damage

Comparative Advantages & Market Position

The GRACO Husky 307 D31331 offers distinct advantages over competing products:

• Proven Reliability: Industry-recognized durability with documented service life exceeding comparable models

• Reduced Total Cost of Ownership: Lower maintenance requirements and extended service intervals provide significant operational savings

• Technical Support: Backed by Graco's global support network and comprehensive technical resources

• Parts Availability: Widespread distribution network ensures quick access to genuine replacement components

Conclusion

The GRACO Husky 307 Air-Operated Diaphragm Pump (Part Number D31331) stands as a testament to Graco's engineering excellence and commitment to quality. Its robust aluminum construction, combined with precisely selected fluid path materials, creates an ideal solution for demanding industrial applications. The pump's versatile performance characteristics, ranging from efficient operation to exceptional reliability, make it a valuable asset across multiple industries.

For operations requiring consistent performance with abrasive, viscous, or chemically challenging fluids, the Husky 307 D31331 delivers unparalleled value through reduced maintenance costs, extended service life, and operational flexibility. Graco's reputation for quality and innovation is clearly embodied in this exceptional pumping solution, providing industries with a reliable partner for their most challenging fluid handling requirements.

The combination of proven engineering, premium materials, and thoughtful design makes the GRACO Husky 307 D31331 an outstanding choice for professionals seeking performance, durability, and value in their industrial pumping applications.
