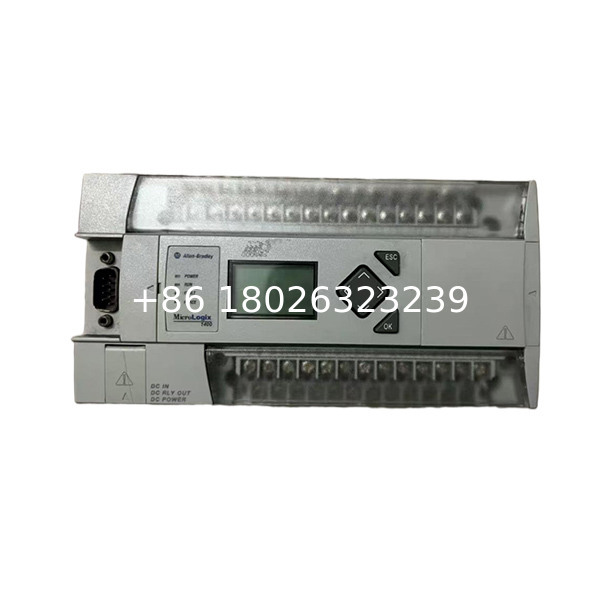

Allen-Bradley 1766-L32BXB MicroLogix 1400 Programmable Logic Controller: A Comprehensive Overview

Introduction to the MicroLogix 1400 Series

The Allen-Bradley 1766-L32BXB is a member of Rockwell Automation's MicroLogix 1400 series of programmable logic controllers (PLCs). These controllers are designed to provide a powerful, reliable, and cost-effective solution for a wide range of industrial automation applications. As a compact yet robust control system, the MicroLogix 1400 series builds upon the strengths of its predecessors, offering enhanced features such as faster processing speeds, higher I/O counts, and expanded communication capabilities. The 1766-L32BXB model, in particular, is engineered to deliver precise control for machinery and processes across various industries, including manufacturing, material handling, packaging, and water treatment

.

Key Features and Capabilities

Processing Power and Memory

The 1766-L32BXB controller is equipped with sufficient processing capability to handle complex control tasks efficiently. It features a non-volatile random access memory (RAM) backed by a battery, ensuring that user programs and critical data are retained even during power outages. This controller supports 10 KB words for user program memory and an additional 10 KB words for user data, providing ample space for most small to medium-sized applications. For applications requiring data logging and recipe storage, the controller offers 128 KB for data logging and 64 KB for recipe storage

.

Integrated I/O Configuration

A standout feature of the 1766-L32BXB is its integrated I/O, which eliminates the need for additional modules in many applications. Its I/O configuration includes:

• 20 Digital Inputs: 12 of these are high-speed digital inputs (24V DC), and 8 are standard digital inputs (24V DC), allowing for connection to a variety of sensors and switches

• .

• 14 Outputs: This includes 6 relay outputs (which can handle both AC and DC loads), 3 high-speed digital outputs (24V DC), and 3 standard digital outputs (24V DC)

• . The relay outputs are particularly versatile for controlling loads like motors, solenoids, and indicators.

This integrated I/O design supports a 24 VDC power supply

, making it suitable for industrial environments with standard DC power sources.

Communication Ports

The 1766-L32BXB is designed for connectivity and supports multiple communication protocols through its three integrated ports:

1. An isolated RS232C/RS485 combination port (8-pin mini DIN)

• .

• A non-isolated RS232C port

• .

• An embedded RJ-45 10/100 Ethernet port

3. .

These ports enable a wide range of communication options, including:

• DF1 protocol (full-duplex, half-duplex master/slave, and radio modem)

• DH-485

• Modbus RTU (master and slave)

• ASCII

• EtherNet/IP

The Ethernet port allows for peer-to-peer messaging, email notifications triggered by system events, and web server capabilities, providing remote monitoring and diagnostics

. This extensive connectivity facilitates seamless integration into larger factory networks and supervisory control and data acquisition (SCADA) systems.

Expansion Capabilities

For applications requiring additional I/O points, the 1766-L32BXB supports the connection of up to seven expansion modules from the 1762 MicroLogix series

. This allows for system customization and scalability, enabling up to 256 discrete I/O combinations to meet specific application needs.

High-Speed Counter and Pulse Train Output

The controller features a high-speed counter capable of handling up to six channels at 100 kHz

. This is essential for applications requiring precise counting of fast pulses, such as in packaging machinery or speed monitoring. Additionally, it supports pulse train output (PTO), which can be used for controlling stepper or servo drives in positioning applications

.

Technical Specifications

The following table summarizes the key technical specifications of the Allen-Bradley 1766-L32BXB PLC:

Programming and Software

The 1766-L32BXB is programmed using Rockwell Automation's RSLogix 500 programming software

. This software provides an intuitive environment for developing, debugging, and documenting ladder logic programs. The controller's operating system is flash-upgradeable, meaning users can easily update the firmware to access new features and improvements without replacing the hardware. The software supports online editing

, allowing modifications to be made to the program while the controller is running, which minimizes downtime during commissioning and troubleshooting.

Applications

The versatility and robustness of the 1766-L32BXB make it suitable for a diverse array of industrial automation applications, including:

• Material Handling Systems: Controlling conveyors, sortation systems, and automated guided vehicles (AGVs).

• Packaging Machinery: Managing fillers, cappers, labelers, and wrappers with precise timing and coordination.

• Water and Wastewater Treatment: Automating pumps, valves, and filters in treatment plants.

• Food and Beverage Processing: Ensuring consistent and hygienic operation of processing equipment.

• General Machine Control: Serving as the primary controller for custom automated machinery and fixtures

• .

Its built-in communication features, particularly EtherNet/IP, make it an excellent choice for applications requiring integration into larger Industrial Internet of Things (IIoT) or Industry 4.0 architectures.

Installation and Maintenance

The 1766-L32BXB is designed for easy DIN rail mounting

, saving panel space and simplifying installation. Wiring is straightforward, supporting wire sizes from 0.25 to 2.5 mm² (22 to 14 AWG). For maintenance, the controller's integrated display (on certain models) provides a user-friendly interface for viewing controller status, diagnosing faults, and modifying data values without a programming laptop

. This reduces mean time to repair (MTTR) and improves overall operational efficiency.

Conclusion

The Allen-Bradley 1766-L32BXB MicroLogix 1400 programmable logic controller is a compact, feature-rich, and highly capable automation solution. Its blend of integrated I/O, extensive communication options (including Ethernet/IP), scalability through expansion modules, and powerful processing capabilities make it a reliable workhorse for countless industrial applications. Whether deployed as a standalone controller or as part of a distributed network, the 1766-L32BXB delivers the performance, flexibility, and durability that engineers and technicians have come to expect from the Allen-Bradley brand. Its design, which balances advanced features with user-friendly operation, ensures that it remains a popular choice for modernizing existing equipment and controlling new machinery in today's competitive industrial landscape.
